Industrial application factory production automation (I).

As industrial automation to the integration of network, artificial intelligence, the development trend of global systematic direction, in order to meet the requirements of the sustainable development of the industry, komi hirose motor according to needs in the use of increasingly stringent environment and reliable operation of the factory automation equipment introduced our [small], [high], [power change], such as solution, Our goal is to pursue thorough reliability and ease of use.

Hirose Electric will be divided into two parts to introduce the kinds of product applications available in the field of industrial production automation.

01

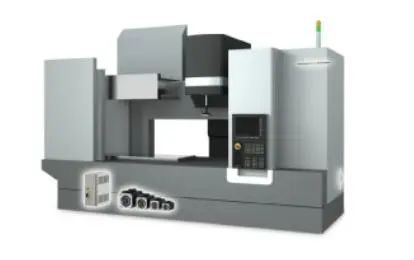

Machine tool
Semiconductor fabrication unit
Packaging equipment/production line
?? slabs line
?? I/O
?? slabs board
?? FPC/FFC connector

?? slabs line

DF62 series are recommended
1. Slim and smooth shape is suitable for wiring in narrow space
2. Clear locking sense and visual confirmation of locking
3. Reliable contact structure
4. Solid terminal structure
5. It can share automatic pressing equipment with DF11/DF59 series
6. Anti-condensation measures (waterproof DF62W)

?? I/O
LF series
Small waterproof shielded connector
1. It is easy to connect shielded cables
2. Waterproof structure: IP67, IP68 (in chimeric state)
3.Easy assembly
4. Latch and lock
5. Obtain safety specifications

?? slabs board

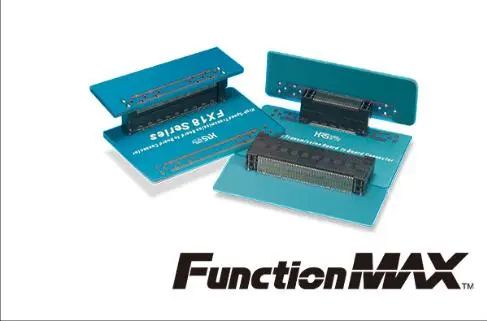

Recommend FX18 series
1. The 0.8 mm spacing
2. MF terminal, various uses
3. Effective chimeric length 2mm (signal terminal)
4. Dip terminals fixed on both sides of the connector of the substrate can enhance the upper, lower, left and right distortion resistance.
5. Guided design is convenient for chimerism

?? FPC/FFC connector

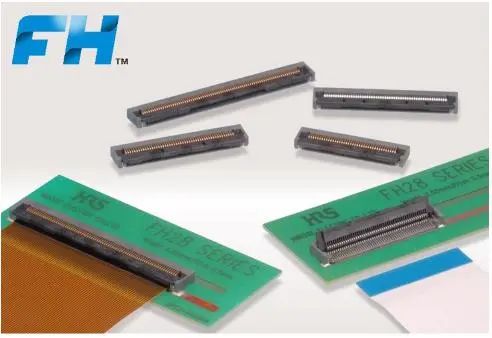

FH28K series are recommended
1.125 ℃ to heat,
Meet all kinds of stringent vehicle testing requirements.
2. Clear lock handle can work safely; A strong latch structure will prevent the driver from falling off even rough handling.
3.FPC positioning structure supports high reliability connection, greatly improving FPC holding force.
4.Excellent operability: Improved FPC insertion operability, corresponding FPC/FFC thickness =0.3mm

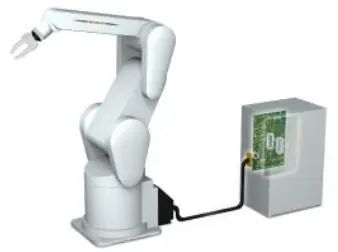

02 Industrial Robots
?? slabs line
?? I/O
?? slabs board
?? Optical connector

?? slabs line

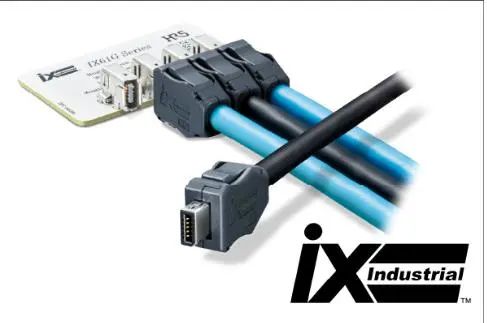

IX series
1. Help to miniaturize the equipment
2. One-key locking structure
3. Anti-warping structure
4. Excellent EMC endurance
5. Support high-speed transmission
6. Supports THR (through-hole reflux) installation

?? I/O

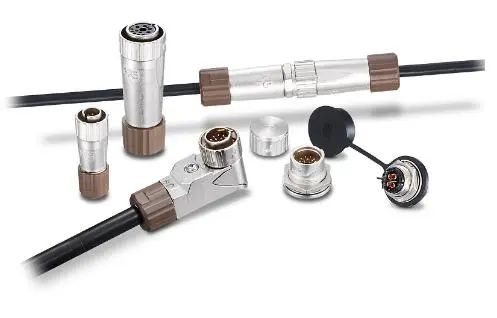

HR34B series are recommended
1. Waterproof structure IP67,IP68
2. Excellent chimerism
3. Select the outgoing direction of the cable
4. Safety specification: 4 cores meet TUV standard
5. Abundant selection

?? slabs board

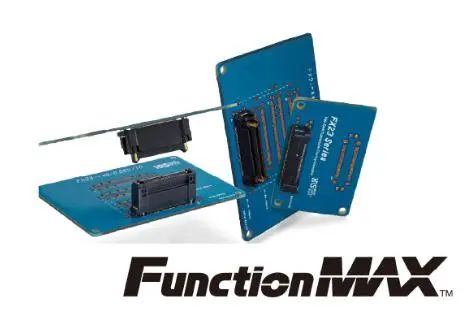

Recommend FX23 series
1. The 0.5 mm spacing
2.Floating amount:
X direction: ±0.6mm
Y direction: ±0.6mm
3. Support high-speed transmission
4. Corresponding automatic assembly (adsorption tapes are standard)
5. Larger oriented design facilitates chimerism

?? Optical connector

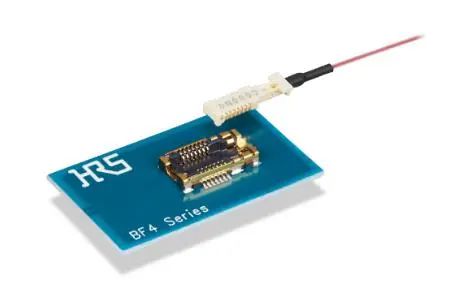

BF4M series are recommended
1. Optical fiber transmission through simple electrical connection;
High speed signal transmission performance with electromagnetic interference resistance.
2. Use highly flexible optical fibers
3. Long-distance, high speed and high quality signal transmission;
4. Low power consumption
5. Space saving,1.5mm low height design
6. Abundant selection: relay type and connection type between devices, etc.

03 CNCs/PLCs
?? Small coaxial/coaxial switch
?? FPC/FFC connector
?? slabs line
?? I/O
?? slabs board

?? Small coaxial/coaxial switch

Recommend the U.FL series
Lightweight SMT small coaxial
1. Chimerism height
(NOM1.9 mm ~ 2, 4 mm)
2. The socket
3. Support frequency up to 8GHz

?? FPC/FFC connector

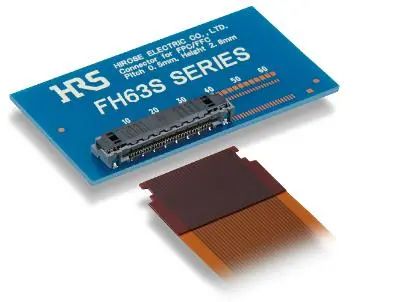

FH63S series are recommended
1.0.5 mm spacing
2. Lower contact with height of 2.8mm, move and lock the 2-point contact
125 ℃ compatible

?? slabs line

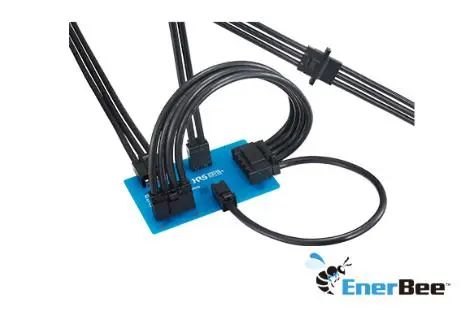

DF60 series are recommended
1. Maximum 65A current transmission
2. Secure locking mechanism to ensure assembly in place; 5 - contact terminal structure with high reliability;
3. Mold design
4. Anti-terminal misplug design, prevent destin, prevent short circuit between terminals
5. Can be used for hot wire (follow IEC 60695-2-11)
6. Finger safety (shock proof)

?? I/O

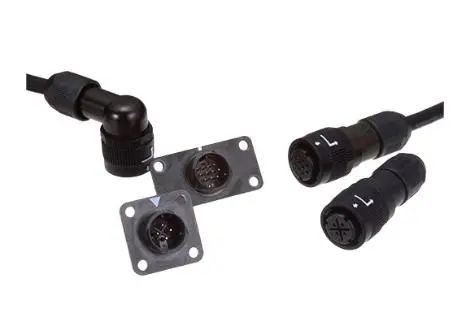

LF series
Small waterproof shielded connector
1. It is easy to connect shielded cables
2. Waterproof structure: IP67, IP68 (in chimeric state)
3. Easy assembly
4. Latch and lock
5. Obtain safety specifications

?? slabs board
Recommend FX18 series
1. The 0.8 mm spacing
2. MF terminal, various uses
3. Effective chimeric length 2mm (signal terminal)
4. Dip terminals fixed on both sides of the connector of the substrate can enhance the upper, lower, left and right distortion resistance.
5. Guided design is convenient for chimerism

——The article content comes from HRS wechat public number
